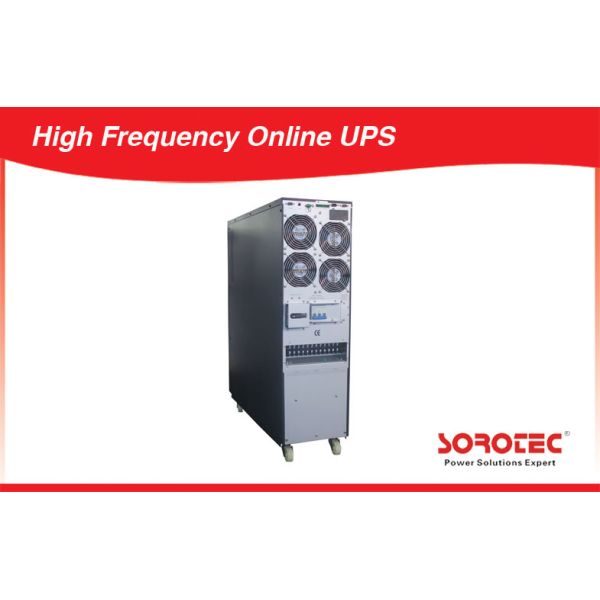

Dual Mains Inputs 110-300 VAC Uninterruptible Power Supplies 10-30KVA
HP9335C plus Series UPS represents the best solution that is both cost effective and environmental friendly, It delivers an excellent integrated autonomy, reduced footprint and optimum input and output performances, guaranteeing reliable and flexible power.
Key Features
1. True double-conversion
2. DSP technology guarantees high performance
3. Output power factor 0.9
4. Wide input voltage range (110-300 VAC)
5. Active power factor correction in all phases
6. 50Hz/60Hz frequency converter mode
7. ECO mode operation for energy saving
8. Accepts dual-mains inputs
9. Emergency power off function (EPO)
10. Generator compatible
11. SNMP+USB+RS-232 multiple communications
12. 3-stage extendable charging design for optimized battery performance
13. Adjustable battery numbers
14. Maintenance bypass available
15. Optional N+X parallel redundancy
16. Optional isolation transformer offers full isolation and complete common mode noise rejection
Product Descriptions of 10Kva Ups 220Vac
| MODEL | HP9335C Plus 10-30KVA |
| 10K | 10K-XL | 15K | 15K-XL | 20K | 20K-XL | 30K | 30K-XL |
| CAPACITY | 10KVA / 9KW | 15KVA / 13.5KW | 20KVA / 18KW | 30KVA / 27KW |
| PHASE | 3 Phase with Neutral |
| INPUT |
| Voltage Range | Low Line Loss | 110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load |
| Low Line Comeback | Low Line Loss Voltage + 10V |
| High Line Loss | 300 VAC(Ph-N) ± 3 % |
| High Line Comeback | High Line Loss Voltage - 10V |
| Phase | Three phase with ground |
| Power Factor | ≥ 0.99 at 100% Load |
| OUTPUT |
| Output voltage | 208/220/230/240VAC(Ph-N) |
| AC Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz |
| Overload | AC mode | 100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec |
| Battery mode | 100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec |
| Current Crest Ratio | 3:1 max |
| Harmonic Distortion | <2 % @ 100% Linear Load; <5 % @ 100% Non-linear Load |
| Transfer Time | Line←→Battery | 0 ms |
| Inverte←→Bypass | 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass) |
| Line←→ECO | <10 ms |
| EFFICIENCY |
| AC mode | > 89% | > 89% | > 89% | > 90% |
| Battery Mode | > 86% | > 88% | > 87% | > 89% |
| BATTERY |
| Standard Model | Type
| 12 V / 9 Ah | 12 V / 9 Ah | 12 V / 9 Ah | 12 V / 9 Ah |
| Numbers | 20(18-20 adjustable) | 2 x 20(18-20 adjustable) | 2 x 20(18-20 adjustable) | 3 x 20(18-20 adjustable) |
| Recharge Time | 9 hours recover to 90% capacity |
| Charging Current | 1.0 A ± 10% (max.) | | 2.0 A ± 10% (max.) | 2.0 A ± 10% (max.) | 4.0 A ± 10% (max.) |
| Charging Voltage | 273 VDC ± 1% |
| Long-run Model | Type | Depending on applications |
| Numbers | 18-20 |
| Charging Current | 4.0 A ± 10% (max.) | | 4.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | 12.0 A ± 10% (max.) |
| Charging Voltage | 273 VDC ± 1% |
| PHYSICAL |
| Standard Model | Dimension,DxWxH(mm) | 832 X250X894 | 832 X250X1275 |
| Long-run Model | Dimension,DxWxH(mm) | 609 X250X768 | 832 X250X828 |
| ENVIRONMENT |
| Operation Temperature | 0 ~ 40°C (the battery life will down when > 25°C) |
| Operation Humidity | <95 % and non-condensing |
| Operation Altitude | <1000m |
| Acoustic Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232 / USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC |
| USB | Power management from SNMP manager and web browser |
| APPLICATION OF OUR PRODUCT |
1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, stadium and so on
4. Power station, field operation and some huge engineer construction
5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip
Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
1,QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2,Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
1.Output wave when take the full load
This product provide pure sine wave output when take the resistance load.
..................................................................................................................................
2.About THDI
Because this series product is not rectifier function, so can’t make the THDI when use it.
................................................................................................................................
3. About service
We are keep the most closely relationship with customers ,In order to satisfy the customer enjoy the most
perfect after- sales service.
..............................................................................................................................
4.About SORO technology
We have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research ,developing new product, perfecting the product . We are provide invests 10% of its annual revenue in researchand development ,aims to offer customers in order to suited to their ever-changing environment enabling themto benefit from the last technological developments.
